  • MAD16
    The perfect combination of musicality and accuracy in the entire frequency range. The custom MAD16 monitors incorporate all the characteristics and sound quality that true audiophiles need
    $2 500
    Order
    Technologies Ambient Acoustics
    MAD

    Unique multi-driver earphones design approach for solving problems with phase matching. The separation of frequency bands is carried out without the use of electric crossovers, but due to the natural slope of the FR of each driver and with the help of various acoustic load of the oscillating circuit of the system of sound bores for drivers and acoustic notch filters ANOR.

    3DD

    Processing, correction of ear impressions and shells printing implemented in digitized form that allows to remove processing errors at each CIEM manufacturing phase, which occurs during the traditional manual processing of impression and shells.

    ANOR

    Unique Ambient Acoustics’ acoustic notch filter, which plays the role of an electric crossover and “cuts off” the zone of sibilance on which the natural ear canal resonance occurs (after the second bend of the ear canal), thereby compensating this gain.

    LEP

    The improved technology of Phase and Impedance correction of earphones. This technology was developed and realized by Ambient Acoustics laboratory in 2013! We were the first laboratory in the world, who made it. LEP makes correction of phase and impedance characteristics of the reactive elements of the Balanced armature drivers.

    SSD
    Drivers and components fixing inside the shell without air cavities, which remove all unwanted parasitic resonances inside the shells that can affect the sound of the earphones.

    SOER

    Excessive sound pressure compensation technology. It reduces the effect of occlusion - a closed volume of the ear canal due to the elastic element (radiating membrane). This technology takes advantage of "open drivers" and reduces sound insulation down to 20 dB without losing bass depth sounding!

    ASP

    Unique Ambient Acoustics lab. two contacts screw plugs. New modern design of plugs is completed by the increased reliability of fixation in the CIEMs due to the screw connection. Plugs can be made in the colors of shells and become an extension of their individual design.

    Specification
    16 DRIVERS
    per ear: 4-InfraLow/Low , 8- Mid, 4-High/UltraHigh BA
    DESIGN
    non-crossover
    SOUND BORES
    2
    FREQUENCY RANGE
    10 Hz ... 22 кHz
    SENSITIVITY (100HZ)
    118.6 dB/mW
    IMPEDANCE (100HZ)
    2.5 Ohm
    WARRANTY
    For electonic components inside - 1 year, Ambient Acoustics Cord - 6 months, Shells (fitting) - 30 days

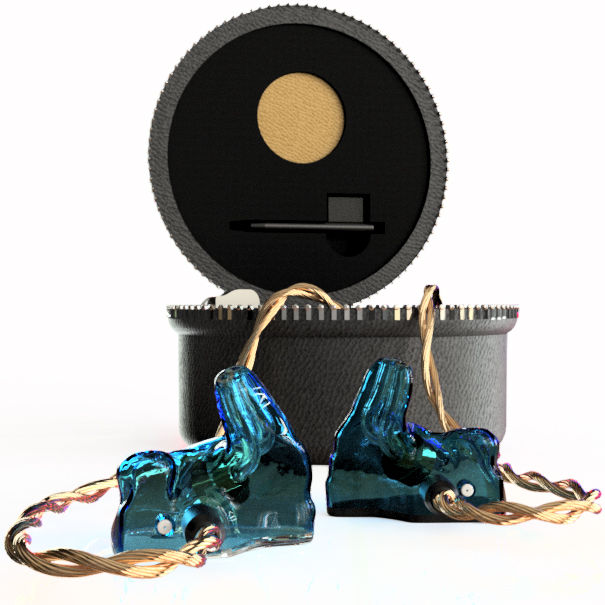

    Included accessories
    CIEM
    MAD16 with individual design
    CORD
    0.78 mm 2-pin connectors, 3.5/4.4 mm straight jack
    CASE
    leather case Ambient Acoustics
    DRY CAPSULE
    to protect CIEM from wet
    CLEANING TOOL
    sulfur and dirt removal
    DOCUMENTATION
    user guide and warranty card
    For whom
    Drums
    MAD3HYB, AM5LE
    Engineer
    MAD4
    Guitar
    AM5LE, MAD6, MAD10
    Singer
    MAD2, MAD3HYB, MAD4, AM5LE, MAD6, MAD10, MAD16
    Keyboard
    MAD4, AM5LE, MAD6, MAD10
    Bass
    MAD3HYB, AM5LE
    Audiophiles
    MAD2, MAD3HYB, MAD4, AM5LE, MAD6, MAD10, MAD16, MAD24
